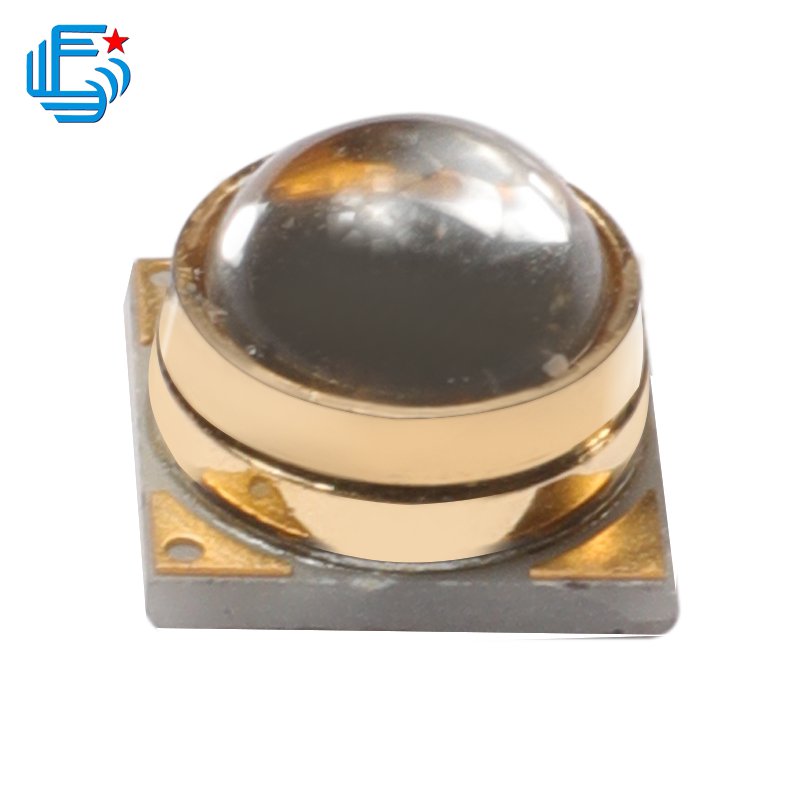

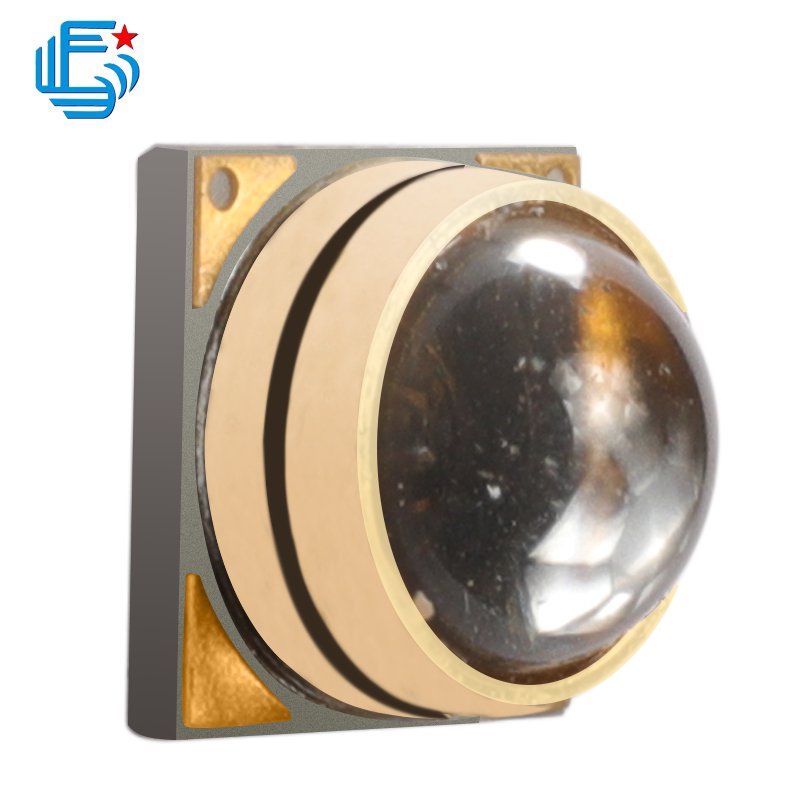

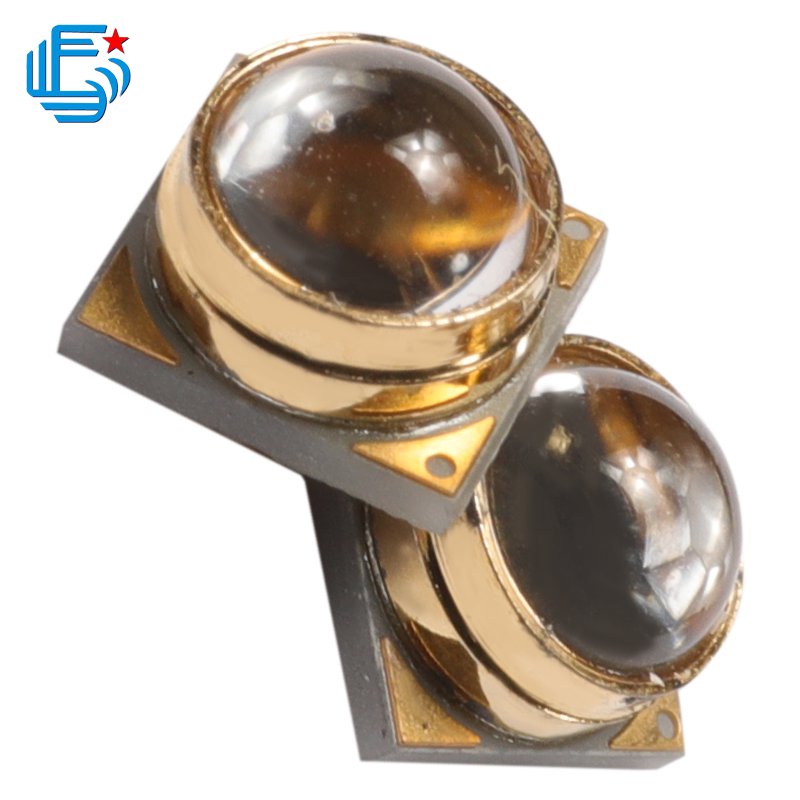

3535 UVA+UVC Two colors Large light output angle High reliability Long life2~8 mW

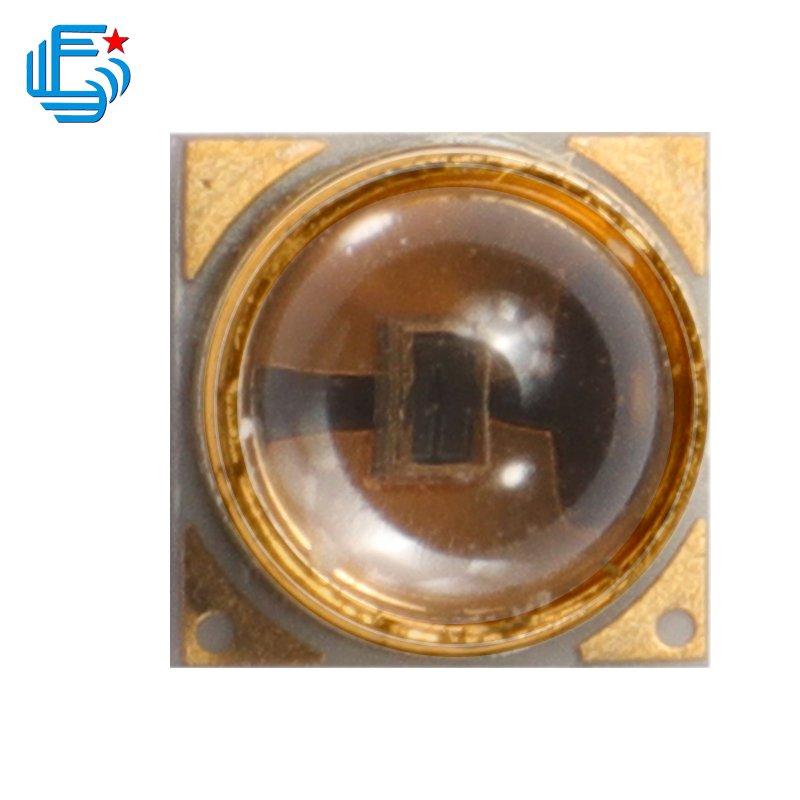

A single device contains three different kinds of chips, namely UVA / UVC / zener diode. Zener diode can protect UVC led from ESD;

As shown in the figure above, ① and ② are positive, ③ and ④ are negative; ⑤ Is the heat pad;

Drawing unit: mm

Package: 3535 package, external dimension: 3.75 × three point seven five × 2.80 (L × W × H) [unit: mm]

Package material: AlN ceramic bracket, hemispherical lens

Number of package chips: 1 pcs

Unless otherwise specified, the dimensional tolerance is ± 0.20 mm

Photoelectric characteristic parameters

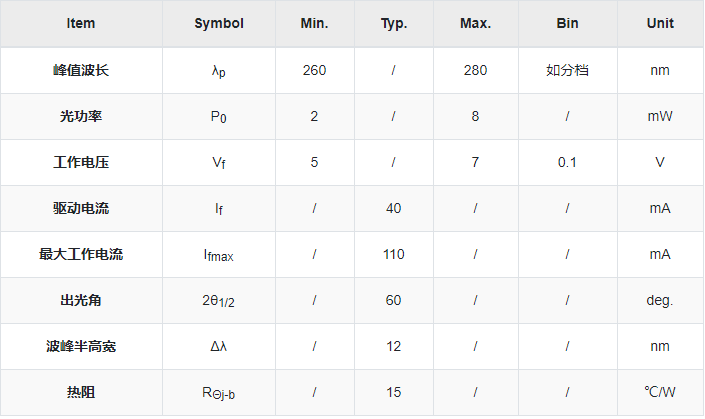

UVC photoelectric parameters and spec range (@ 40mA, Ta = 25 ℃, Rh = 30%)

These values are measured by a spectrum analyzer and an integrating sphere measurement system. The tolerances are as follows: working voltage (VF) ± 2％； Optical power (P0): 0 ± 10％； Peak wavelength（ λ p）： ± 3.0 nm

Although all LEDs are tested by our equipment, some values may be slightly different depending on the conditions of the test equipment.
